Pellet Mills (Light Industrial)
Flat die pellet mill of R-type has larger pellets capacity when compared with D-type flat die pellet mill. The pellets made by R-type flat die pellet mill is mainly for sale and business, as these pellets have more smooth surface, higher density and longer lasting energy. Besides, the structure of its rollers and die and the pellets making process is also different from D-type.

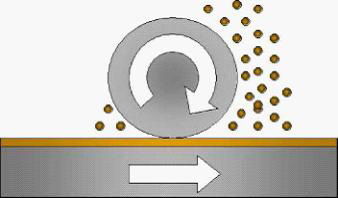

When making pellets with R-type flat die pellet mill, the die inside the machine is totally statinary, while the rollers are rotating and revolving on its own axis. The rollers press raw materials into the holes of the die to form pellets. And a series of knives on the other side of the die cut the emerged pellets into the same pre-settled length.
ZLSP-200 R-Type Wood Pellet Mill
 |
 |
Technical data & Specifications:
| Capacity: | 100-120KG/H |
|---|---|
| Power: | 7.5KW |
| Dimension: | 1150*560*750mm |
| Weight | 300KG |
| Material of die and roller: | alloy steel |
| Application life of die and roller: | No less than 2000 working hours |
| Quality Guarantee: |
one year for main machine Five years for gearbox and other parts ( not including dies and rollers ) |
| Electricity situation: | All of the machines listed above are fitted for 380 volts, 50 hertz and 3 phases electricity. If clients have special electricity requirements,it may be emplaced on the machine at an extra cost. |
| Motor: | Star delta starter |
| Delivery time: | 7-10 days |
ZLSP-300 R-Type Wood Pellet Mill
 |
Technical data & Specifications:
| Capacity: | 250-350KG/H |
|---|---|
| Power: | 22KW |
| Dimension: | 1350*650*800mm |
| Weight | 420KG |
| Material of die and roller: | alloy steel |
| Application life of die and roller: | No less than 2000 working hours |
| Quality Guarantee: |
one year for main machine Five years for gearbox and other parts ( not including dies and rollers ) |
| Electricity situation: | All of the machines listed above are fitted for 380 volts, 50 hertz and 3 phases electricity. If clients have special electricity requirements,it may be emplaced on the machine at an extra cost. |
| Motor: | Star delta starter |
| Delivery time: | 10-12 days |
ZLSP-350 R-Type Wood Pellet Mill
 |
Technical data & Specifications:
| Capacity: | 450-500KG/H |
|---|---|
| Power: | 30KW |
| Dimension: | 1650*1000*1200mm |
| Weight | 800KG |
| Material of die and roller: | alloy steel |
| Application life of die and roller: | No less than 2000 working hours |
| Quality Guarantee: |
one year for main machine Five years for gearbox and other parts ( not including dies and rollers ) |
| Electricity situation: | All of the machines listed above are fitted for 380 volts, 50 hertz and 3 phases electricity. If clients have special electricity requirements,it may be emplaced on the machine at an extra cost. |
| Motor: | Star delta starter |
| Delivery time: | 10-12 days |
ZLSP-400 R-Type Wood Pellet Mill
 |
Technical data & Specifications:
| Capacity: | 350-450KG/H |
|---|---|
| Power: | 30KW |
| Dimension: | 1400*800*1450mm |
| Weight | 770KG |
| Material of die and roller: | alloy steel |
| Application life of die and roller: | No less than 2000 working hours |
| Quality Guarantee: |
one year for main machine Five years for gearbox and other parts ( not including dies and rollers ) |
| Electricity situation: | All of the machines listed above are fitted for 380 volts, 50 hertz and 3 phases electricity. If clients have special electricity requirements,it may be emplaced on the machine at an extra cost. |
| Motor: | Star delta starter |
| Delivery time: | 10-12 days |
ZLSP-450 R-Type Wood Pellet Mill
 |
Technical data & Specifications:
| Capacity: | 600-700KG/H |
|---|---|
| Power: | 37KW |
| Dimension: | 1800*1100*1350mm |
| Weight | 1100KG |
| Material of die and roller: | alloy steel |
| Application life of die and roller: | No less than 2000 working hours |
| Quality Guarantee: |
one year for main machine Five years for gearbox and other parts ( not including dies and rollers ) |
| Electricity situation: | All of the machines listed above are fitted for 380 volts, 50 hertz and 3 phases electricity. If clients have special electricity requirements,it may be emplaced on the machine at an extra cost. |
| Motor: | Star delta starter |
| Delivery time: | 12-15 days |
What are the pellets made from?
Pellets can be made from wood,sawdust,plastic,foam,wheat,barley,cotton and fibrous waste. Steam or binding agent such as molasses may also be added.
Benefits of Flat Die Pellet Mills:
-The flat die pellet mill and homemade pellet mill are easier to clean than the ring die pellet mill
-Able to change die and roller faster for more time to produce pellets.
-Small and lightweight, which makes small-scale production possible.
-Visibility,to viewing the material during pelletization as the best way to fix problems.
Wood Pellet Mill with Rotating Roller Design:
There are two designs of the flat die pellet mills/small pellet mill, One version of the wood pellet mill has a rotating die while the other has rotating rollers. In more details, the first type of these small pellet mills has a stationary roller shaft with a rotating die create wood pellets. The second design has a stationary die with a rotating roller shaft so that the rollers spin to force the feedstock through the holes of the die which are then condensed into wood pellets.
There are two advantages to the wood pellet mill with a rotating roller design. One is that the rotating roller has much longer service life than the traditional design--about 2000 hours.Furthermore wood pellets produced by the rotating roller design are much longer,of up to 3 centimeters or more.
